How to install a mini float valve in your water tank?
By JUNY | An Ideal way to save water
Key words: mini float valve | install a mini float valve easily & quickly | Always Keep your water tank full without leakage
Material: float valve sets, water tank with hole ( or a drill)
Use time: 3-10 mins
Content
- What is a water float valve?
- The differences between JUNY new structure float valve and trational float valve
- How to install JUNY Mini Float Vavle in your tank very quickly step by step? Video & Graphical description
- Key Takeaways
- FAQ
1. So firstly is many many people may confused what is a water float valve?
Easilly speacking, a float valve is a advice could be installed in your water tank, water bucket, water cistern… to help you
automaticly stop or start the water supply. In order to make you understand much more easier, I will make examples for your reference.
I am not sure if everyone will meet water overflow in your life? I really am
Now here we will show you how to install a mini float valve in your water tank.
The fist example is that now I need a bucket of water, so I just turn on my water supply to let the water flow into my bucket, it takes some time then I walk away to get a coffee first…Maybe about 1-2 hours I suddenly remembered I forgot my water supply is still on!! So my water is over flow and wasted a lot of water, what a mess!
The second example is that I am washing my clothes, and just run out of water. So I run to open my pump or water supply to refill my water tank or bucket, when the water if full I run to close the water supply…I still washing my close or other things and again run out of water. So I do it again to open and close my water supply…It really takes a lot of time..
If you also meet the problems above, why not use a mini float valve? It works very well and help us to solve the water overflow and keep our water full at a consistent level!
2. Here I will show the differences between JUNY new mini float valve with old traditional float valve
3. Let’s get start How to install JUNY mini float valve

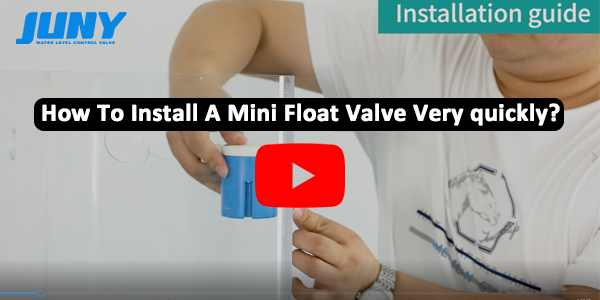

a. Video description below
b. Graphical description

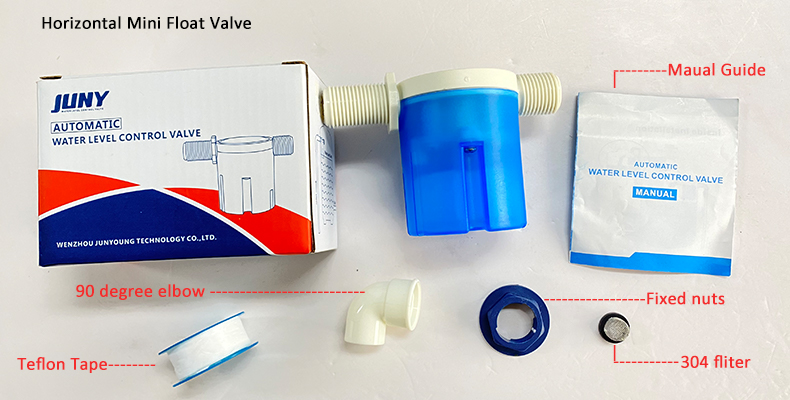

First Check the mini float valves and accessories. So a set of mini float valve = a mini float valve+a Manual guide+90 degree elbow+304 filter + Teflon Tape + Fixed nuts ( Need check with sales, usually don’t include it), as below pictures show

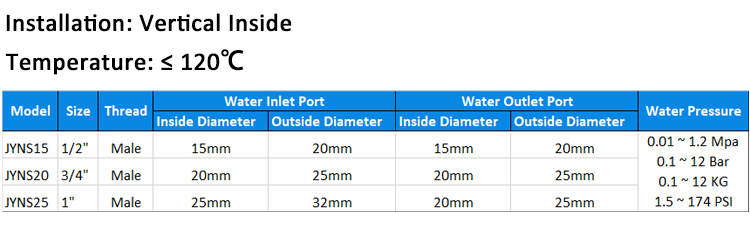

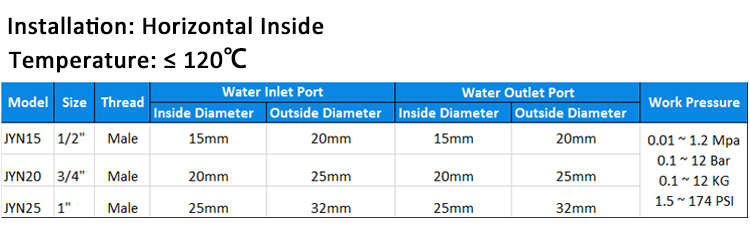

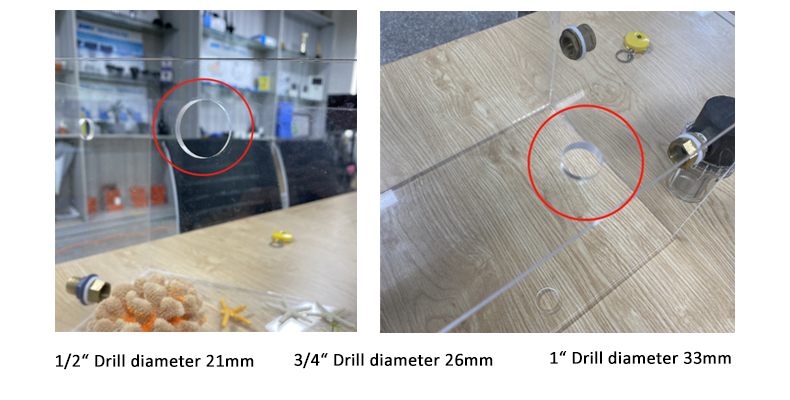

Step 1. Drill a 1/2” or 3/4” or 1” hole (a little bigger than the water inlet port) at the side or top of your tank. If not so sure about the size please check the actual valves on your hand or the table as below:

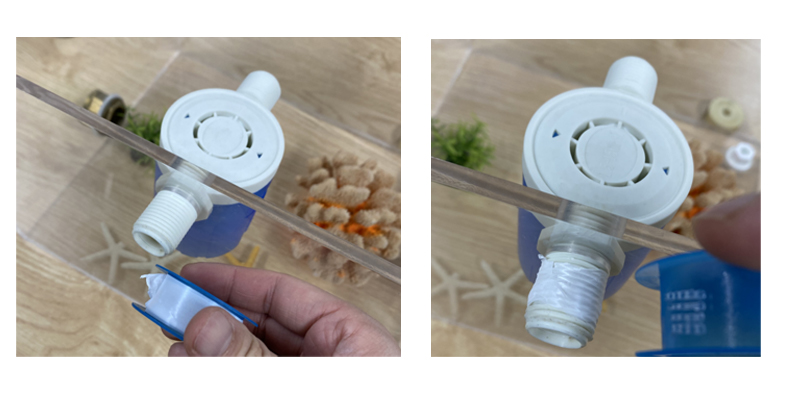

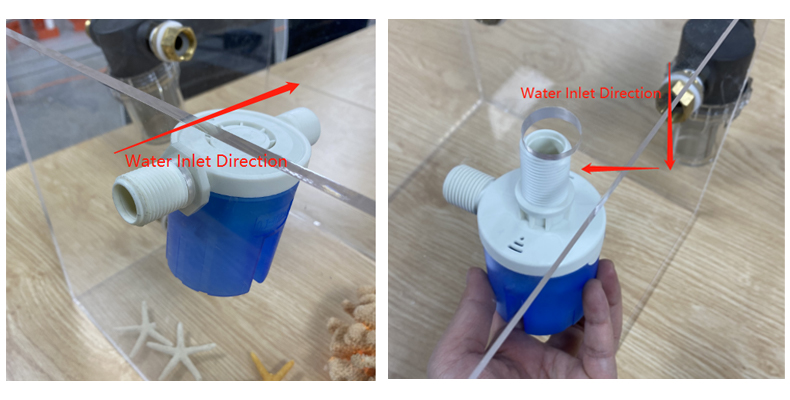

Step 2. Install the valve to the water tank, valve is inside and make sure the water inlet port through the hole we drilled.Put the teflon tape on the water inlet port.

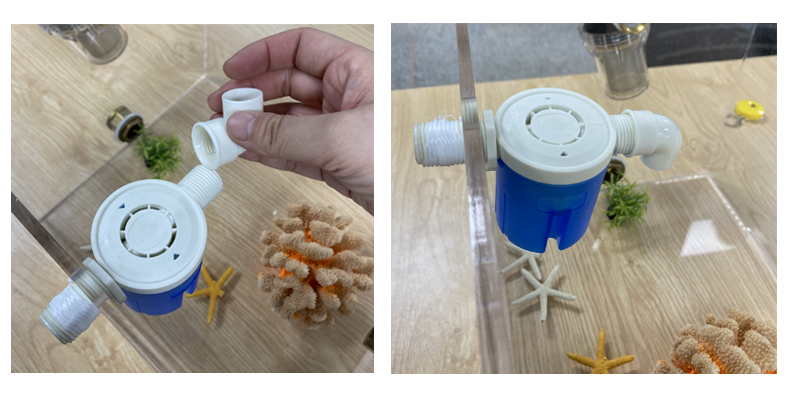

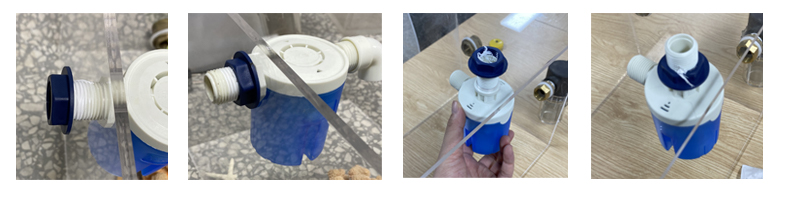

Step 3. Install the 90 Degree Elobow first
Step 4. Install a fixed nuts to the water inlet port of the valve
Step 5. Connect with the water pipe

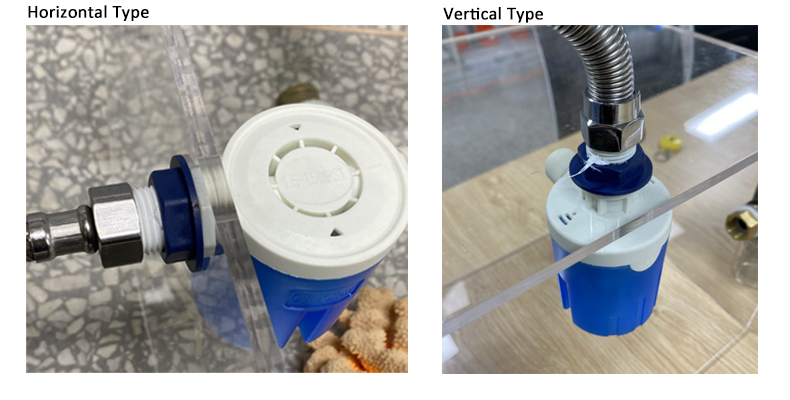

Step 6. Adjustment and finished! Start the water supply
Above is our valves’ installation into a water tank, of course do please install the valve anywhere you want to control your water level and below picture showes other idea also could click the picture link to more applications, such as cooling tower, water buckets, animal drinking, solar system heater and so on.
4. Key takeaways
So now we have knew water float valves are usually used in water tank, water cistern and so on, could help us to automaticly stop or start the water supply, keep our water tank full of water without people nearby and don’t worry about water leakage
Comparing with traditional float valve, new structure mini float valve have smaller size, wider application, easy to install and maintain, usually have size 1/2”, 3/4” and 1”
Install a mini float valve is very easily just watch the video and the Graphical description step by step.
5. FAQ
Q1: How did you contribute to minimize the water wastage?
A1: Install float valve to control overflow from the reservoir tanks
Q2: What’s the advantage between new structure mini float valve with the traditional float valve?
A2: Smaller size, long life time, wider application, never rust, very easy to install and maintain, more information please click below link to know more about the mini float valve.
https://water-controller.com/product/content/115.html
Q3: Where else can the float valve be used besides water tanks?
A3: The mini float valves could be used in water tanks, water towers, water cisterns, cooling tower, water buckets, DIY animal drinkings and so on. If you want to know more, please link below to get more application and hope could help you😊
https://water-controller.com/cases.html
Q4: How could I get the mini float valve? and what is the min order?
A4: We are verified manufacturer in alibaba platform, have 12+ years experience, can order online and keep touch with your order, of couse email will be fine as well, the min order is 10pcs, if you want to know more about our shipping package, feel free to leave us message via email sales04@topvall.com
Hope you could get the information you want and If you have any question about the installation or mini float valve, just feel free to leave me a message via email sales04@topvall.com, have a great time!
