GENERAL INTRODUCTION

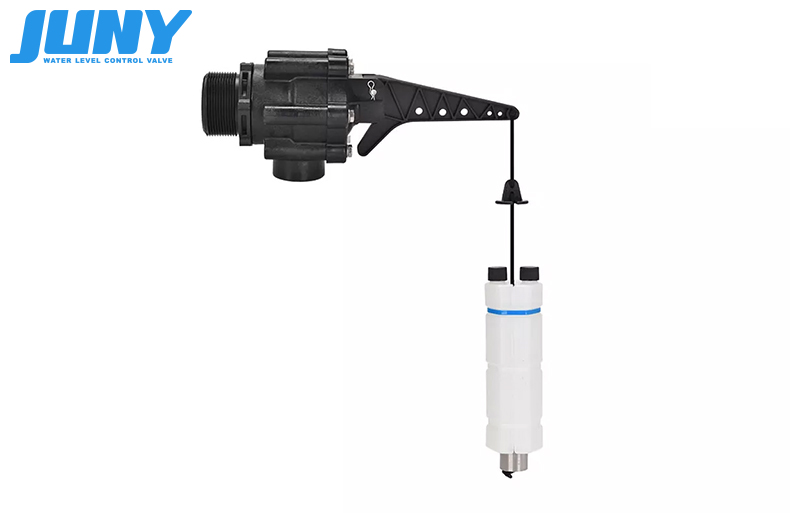

The TANKBUDDY VALVE is patented product, It is ideal for water tanks which are filled by running water or a pressure system controlled by water pump.
The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system(Level difference accept Customization).
The TANKBUDDY VALVE is patented product, It is ideal for water tanks which are filled by running water or a pressure system controlled by water pump.
The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system(Level difference accept Customization).

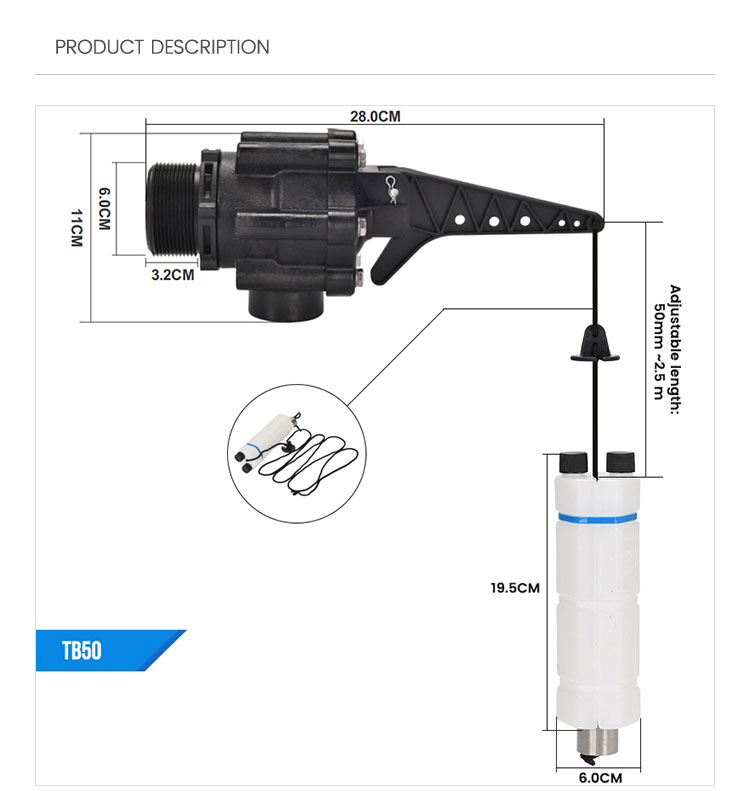

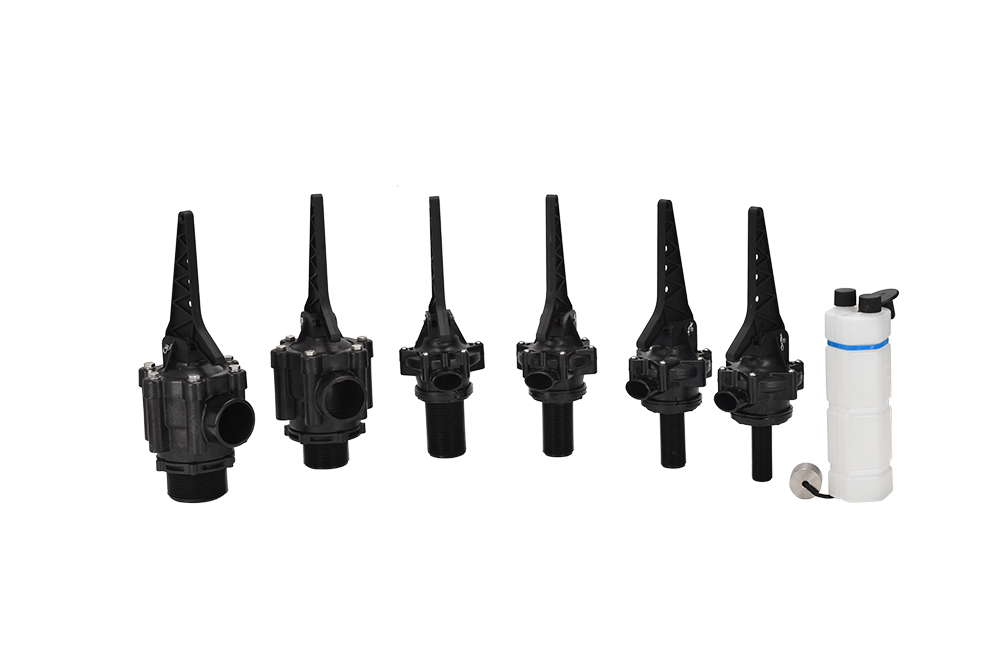

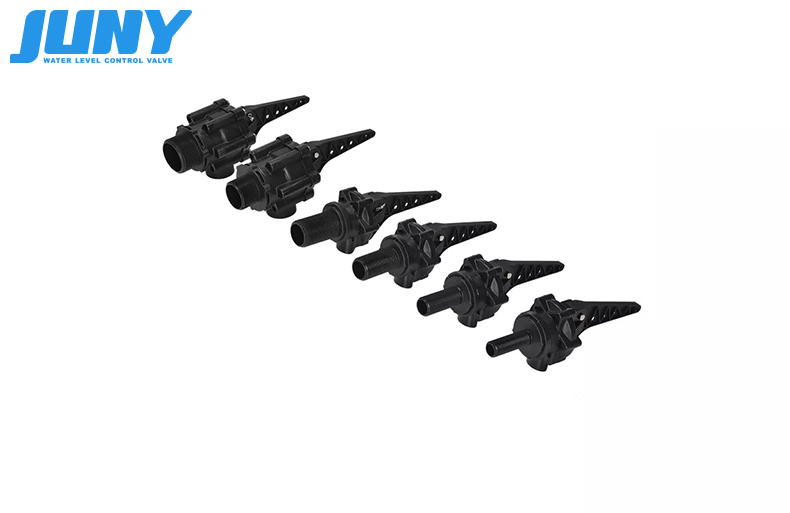

| MODEL | SIZE | FLOW RATE | WORK PRESSURE | ADJUSTABLE WATER LEVEL |

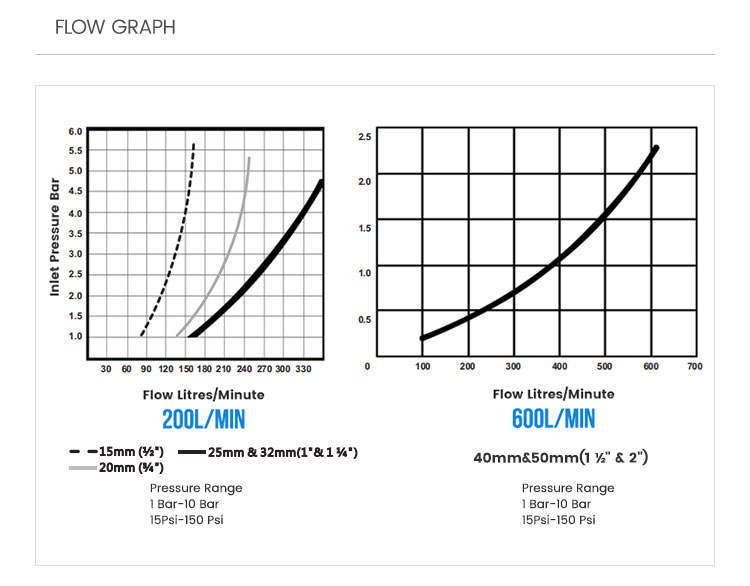

| TB15 | 1/2" | 200L / MIN | 1-10MPa 1-10Bar 15-150PSI | 50MM up to 2.5M CUSTOMIZED |
| TB20 | 3/4" | |||
| TB25 | 1" | |||
| TB32 | 1.25" | |||
| TB40 | 1.5” | 600L / MIN | ||
| TB50 | 2” | |||
| TB65 | 2.5” | |||
| TB80 | 3” |
ADVANTAGE
· High flow. Ideal for all makes and models of tanks.
· Available inlet sizes.Keeps pump operation to a minimum.
· Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.

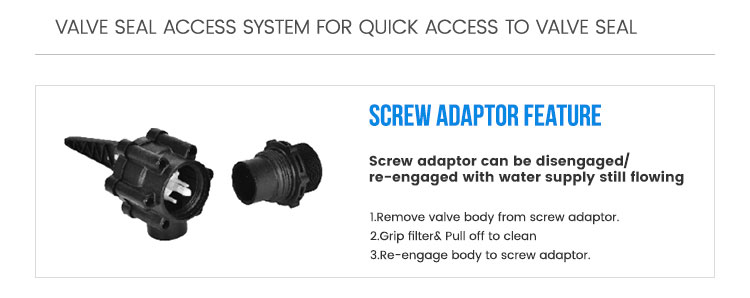

· Valve Seal Access System for quick access to valve seal.
· High flow. Ideal for all makes and models of tanks.
· Available inlet sizes.Keeps pump operation to a minimum.
· Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
· Valve Seal Access System for quick access to valve seal.

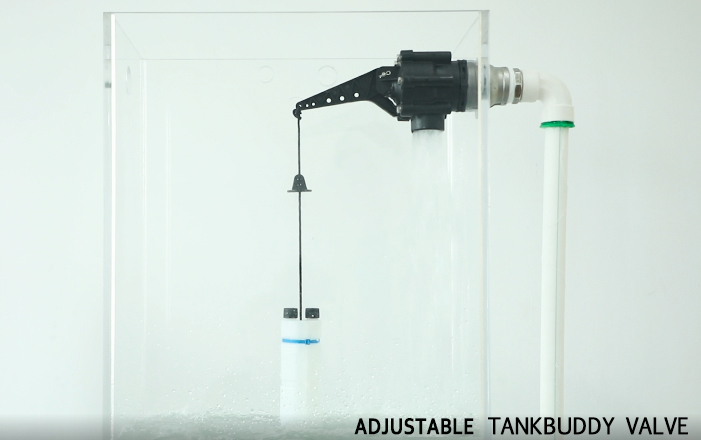

WORK PRINCIPLE

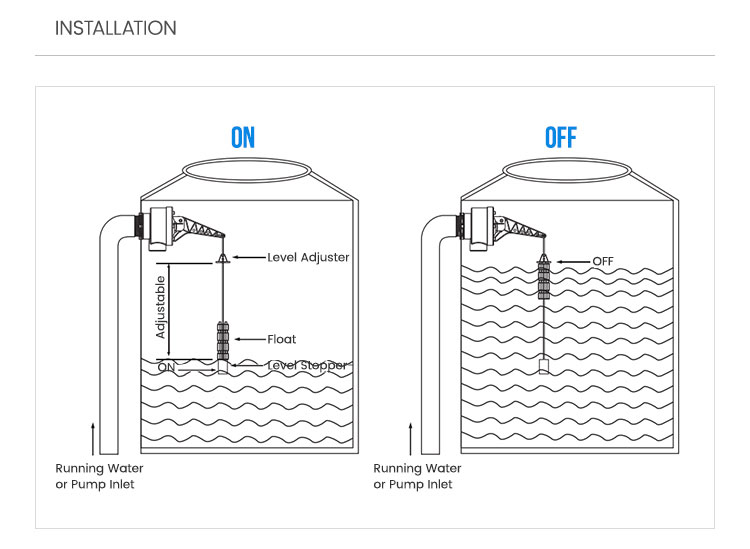

· The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded tankinlet.

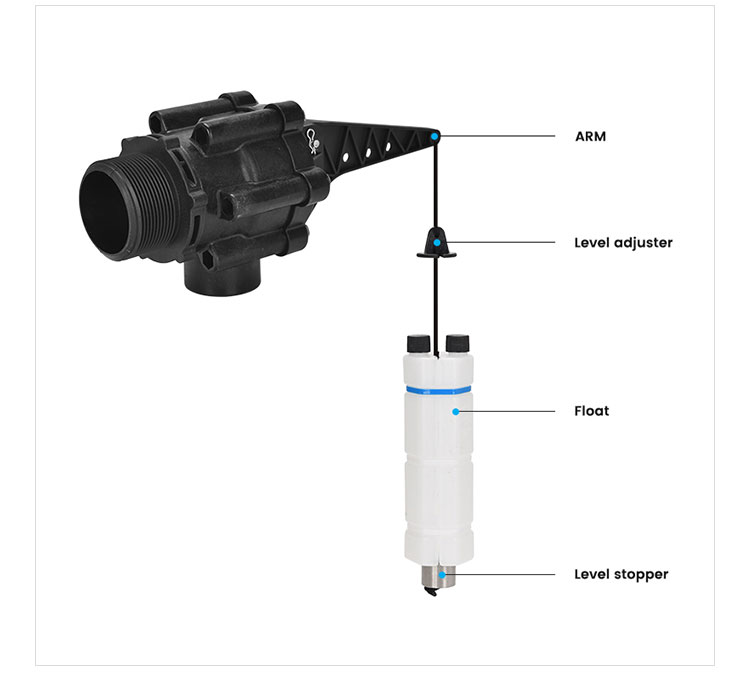

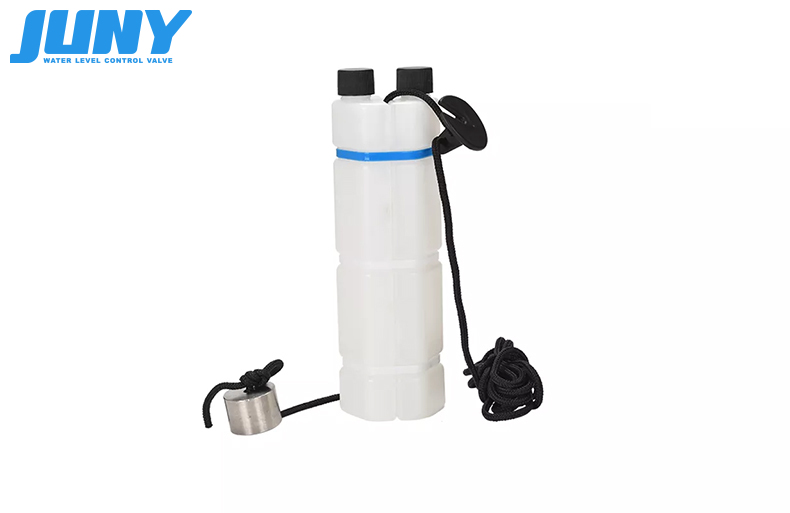

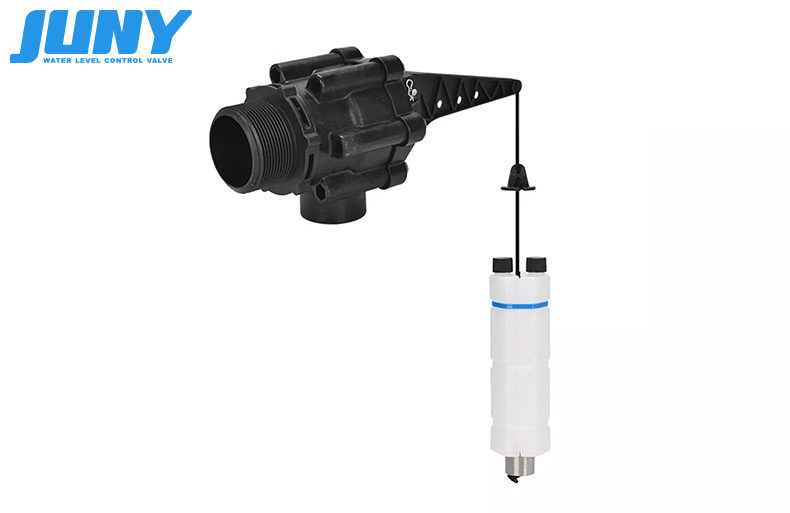

· As the tank empties, the float travels down the corduntil it hits the level stopper. The valve then opens immediately to give a full flow.
· As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down.
· Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
· The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded tankinlet.
· As the tank empties, the float travels down the corduntil it hits the level stopper. The valve then opens immediately to give a full flow.
· As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down.
· Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
APPLICATION

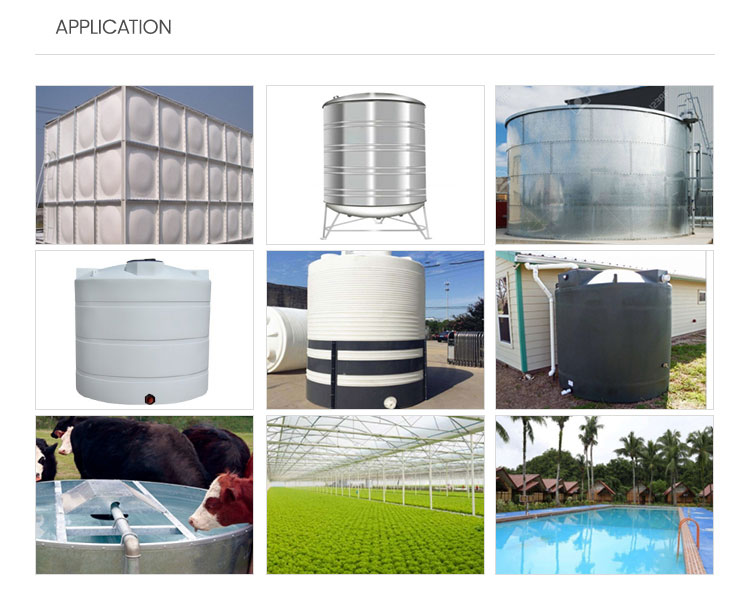

water tank、water tower、water pool、Irrigation、animal drinking 、Spray equipment 、swimming pool etc.
water tank、water tower、water pool、Irrigation、animal drinking 、Spray equipment 、swimming pool etc.
